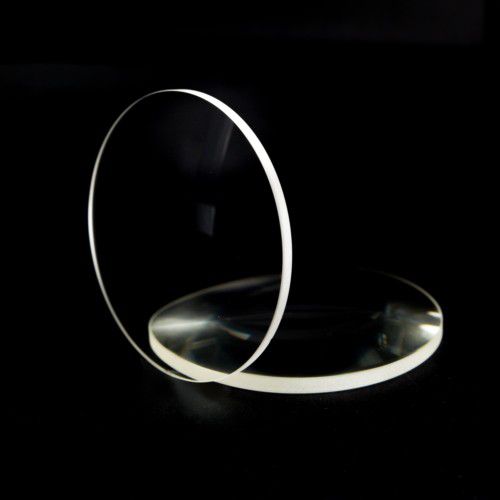

Plano Convex Spherical Optical Lens

About Plano-convex lens:

A plano-convex lens is a type of lens that has one flat (or planar) surface and one convex surface that bulges outward. The convex surface causes light to converge, while the flat surface allows the light to pass through without bending. This type of lens is often used in optical systems to focus or magnify light. Plano-convex lenses can be customized from materials such as glass, plastic, or quartz, and can have different sizes and shapes depending on the specific application.

How convex lens work?

Plano-convex lenses are used for applying focus to an optical system, and collimating diverging light beams. ... Low spherical aberration is obtained if the lens is orientated in a way that causes the collimated beam to enter or exit the curved surface, thereby making the plano side face towards the point source or focus.

You are welcome to contact us for customized plano-convex lenses.

● What is the magnification formula for lenses?
The magnification formula for a plano-convex lens is:

m = (d₀ - f) / f

where "m" is the magnification, "d₀" is the object distance (distance between the object and the lens), and "f" is the focal length of the lens.

● Application of Plano-Convex lenses

Plano-convex lenses are widely used in optical display system, optical projection system, optical imaging system and laser measurement system.

Inquire Now Next Product

Parameters

Specifications of Plano-Convex Lens:

Oplens can not only customize the plano-convex lens with common materials of N-BK7 (Shott) and fused silica, but also customize the plano-convex lens of any glass material.

We have a large selection of ready-to-use optical components in stock, including a wide range of Plano-Convex Lenses. Our spherical convex lens are available with various substrate and coating options. Our anti-reflection coatings cover a broad spectrum, from Ultraviolet (UV) to Infrared (IR), including options such as UV-AR, UV-VIS, MgF2, VIS 0°, VIS-NIR, NIR I, NIR II, and Telecom-NIR. We also offer additional coatings specifically designed for laser wavelengths, such as 266nm, 355nm, 532nm, or 1064nm. For Infrared (IR) applications, we recommend using Germanium (Ge), Silicon (Si), or Zinc Selenide (ZnSe) substrates.

You are welcome to contact us for customized plano-convex lenses.

Material:

Surface Flatness:

Scratch/Dig:

Eccentricity:

Focal Length Tolerance

Diameter Tolerance:

Thickness Tolerance:

Clear Aperture:

Coating:

Diameter Range:

Optical Glass

< λ/5 @ 633nm

< 40/20 (both sides)

≤ 1arcmin

< ± 1%

< + 0.00/ - 0.02mm

< ± 0.05

≥ 95% of diameter

AR OR BBAR

5~260mm

Besides Surface Flatness, Eccentricity, Focal Length Tolerance, Diameter Tolerance and soon, specifications of Plano-convex lens also include index of refraction, Abbe number, laser damage threshold, Knoop hardness and scratch resistance. If you want to know more, please contact our engineers, we can customize the production of precision plano-convex lens according to your needs.

You are welcome to contact us for customized plano-convex lenses.

Stock Products:

Serial No.	Parts No.	Material	DIA	R1	R2	T_C	F
1	S6P6	H-ZF13	6	4.71	∞	2.5	6.00
2	S6.7P6	LAK6	6.7	4.16	∞	4	6.00
3	S6P7.5	H-ZF13	6	5.89	∞	2.5	7.50
4	S5P7.5	H-ZF13	5	∞	5.89	1.9	7.50
5	S8.5P7.62	ZF10	8.5	∞	5.248	4.95	7.62
6	S7P7.9	H-K9L	7	∞	4.1	3	7.90
7	S8P9UV	JGS1	8	4.13	∞	3.8	9.00
8	S6P9UV	JGS1	6	4.13	∞	2.5	9.00
9	S20R9.77	JGS1	20	19.54	∞	6	9.77
10	S6P9.8	H-ZF7LA	6	∞	7.834	1.7	9.80
11	S5P10	H-K9L	5	5.187	∞	1.64	10.00
12	S7P10.1	K9	7	∞	5.2	2.5	10.06
13	S7.7P10.6	H-K9L	7.7	5.5	∞	2.4	10.60
14	S5P12.5	JGS1	5	∞	5.74	3	12.50
15	S8P12.6	K9	8	∞	6.5	2.4	12.59
16	S10P14	H-ZF2	10	∞	9.362	3.5	14.00
17	S13.6P14.3	H-ZLAF55C	13.6	11.95	∞	2.9	14.30
18	S9P14.9	H-BAK7	9	∞	8.475	3	14.90
19	S15P15	H-ZF2	15	10.09	∞	5.5	15.00
20	S7.6P15	JGS1	7.6	∞	6.92	3.15	15.00
21	S5P15.5	H-LAF10L	5	12.226	∞	2.22	15.50
22	S12.8P17.7	H-ZK3	12.8	10.4	∞	5	17.70
23	S15P19.7	H-ZK11	15	12.58	∞	4.4	19.70
24	S12.7P20	H-K9L	12.7	10.3	∞	4	20.00
25	S10P20PCX	H-K9L	10	∞	10.34	3	20.00
26	SQ10P20.3	H-K9L	14.14	∞	10.5	4	20.30
27	S15P22.5	H-ZF2	15	15.12	∞	3.35	22.50
28	S9P23.9	H-LAF50A	9	12.345	∞	2	23.90
29	S10P24	H-K9L	10	12.417	∞	3	24.00
30	S12P25PCXFS	JGS1	12	∞	11.46	3.92	25.00
31	S25.4P25.3	H-K9L	25.4	∞	13.075	11.7	25.30
32	S12.7P25.4PCX	H-K9L	12.7	∞	13.13	3	25.40
33	S24P27.5	H-ZK11	24	17.576	∞	6	27.50
34	S20P27.7	H-LAK3	20	20.75	∞	3.8	27.70
35	S18.5P29.4	ZK9	18.5	∞	18.239	3.8	29.40
36	S25P32.6	ZK11	25	∞	20.8	5.5	32.57
37	S20P32.6-C	H-K9L	20	∞	16.82	4.5	32.60
38	S20P32.6	H-K9L	20	∞	16.82	4.5	32.60
39	S25.4P35	H-K9L	25.4	18.088	∞	7	35.00
40	S22P35.3	H-LAK2	22	∞	24.55	4	35.30
41	S25.5P36.3	LAK7	25.5	25.85	∞	5	36.26
42	S30P36.5	K9	30	18.86	∞	9	36.50
43	S25P36.5	LAF10	25	28.77	∞	4.1	36.50
44	S12P37	H-ZK9A	12	22.891	∞	1.6	37.00
45	S6P38	H-K9L	6	19.68	∞	2	38.00
46	S12.7P38.1PCX	H-K9L	12.7	∞	19.69	3	38.10
47	S22P38.6	H-ZF3	22	∞	27.72	4.5	38.60
48	S20P40	H-K9L	20	20.679	∞	4.6	40.00
49	S10P40PCX	H-K9L	10	∞	20.67	3	40.00
50	S12P40PCXFS	JGS1	12	∞	18.34	3.13	40.00
51	S12.7P40.1	K9	12.7	20.73	∞	3	40.10
52	S25P40.4	ZK5	25	∞	24.66	5.4	40.35
53	S6P41.2	H-ZF7LA	6	32.81	∞	1.7	41.20
54	S24P41	ZK9	24	∞	25.59	6	41.25
55	S27P41.5	LAF10	27	32.66	∞	4.7	41.45
56	S20P42.7	H-K9L	20	∞	22.04	3.5	42.70
57	S32P43.9	K9	32	∞	22.7	9.3	43.92
58	S26P44	LAF10	26	∞	34.76	4	44.09
59	S18P45	H-K9L	18	∞	23	3	45.00
60	S19.5P45	ZK9	19.5	27.93	∞	2.8	45.02
61	S15P46.8	H-K9L	15	∞	24.2	2	46.80
62	S28P46.8	ZK9	28	∞	29.04	5.4	46.82
63	S40P47.1	JGS1	40	21.59	∞	25	47.10
64	S18P47.4	K9	18	∞	24.49	3.2	47.43
65	S17P49.5	K9	17	∞	25.06	4	48.49
66	S44P48.8	H-ZLAF50B	44	∞	39.2	8	48.80
67	S12.7P50	H-K9L	12.7	∞	26.25	2.5	50.00
68	S20P50	H-K9L	20	∞	25.88	3.23	50.00
69	S40P50	H-K9L	40	∞	25.95	11.4	50.00
70	S25P50PCXFS	JGS1	25	∞	22.92	5.84	50.00
71	S12.7P50.8PCX	H-K9L	12.7	∞	26.25	2.5	50.80
72	S21P51.2	K9	21	∞	26.4	4.2	51.17
73	S16P51.4	H-K9L	16	∞	26.533	2.85	51.40
74	S22.5P51.7	H-K9L	22.5	∞	26.71	4	51.68
75	S10.5P51.7	H-ZF2	10.5	34.78	∞	3.64	51.70
76	S22P52.3	H-ZK11	22	33.42	∞	12.4	52.30
77	S21.5P52.3	H-ZK11	21.5	33.42	∞	12.4	52.30
78	S8P54	H-ZF4	8	39.374	∞	3.1	54.00
79	S21P54.4	H-QK3L	21	26.53	∞	3.3	54.40
80	S17.4P56	H-ZK3	17.4	∞	32.96	3.6	55.95
81	S18P56	H-ZK3	18	∞	32.96	3.6	55.95
82	S30P56.2	H-LAK53A	30	∞	42.65	4.2	56.20
83	S18P56.4	H-ZF7LA	18	45.435	∞	3	56.40
84	S21P57.5	H-ZK11	21	∞	36.73	2.7	57.50
85	S16P58.9	JGS1	16	∞	27	3.2	58.90
86	S47P60.2	H-K9L	47	∞	31.124	12.6	60.20
87	S43P61.5	H-ZF13	43	∞	48.267	7	61.50
88	S16P62.5	H-K9L	16	32.29	∞	2.7	62.50
89	S30P64.5	H-K9L	30	33.328	∞	5	64.50
90	S11P68	H-F4	11	42.17	∞	4.1	68.00
91	S8P68	H-F4	8	42.17	∞	4.1	68.00
92	S20P69	JGS1	20	∞	31.688	3	69.00
93	S40P70	H-K9L	40	∞	36.31	7.5	70.00
94	S30P75	JGS1	30	34.28	∞	6	75.00
95	S25P75	H-K9L	25	∞	38.76	4.5	75.00
96	S25.4P76.5	H-K9L	25.4	∞	39.54	4.1	76.50
97	S30P77.7	H-ZF6	30	∞	58.641	4	77.70
98	S66P82.7	H-LAK59	65.98	∞	57.15	12.1	82.70
99	S48.4P84.2	H-K9L	48.4	∞	43.506	9.6	84.20
100	S48P84.2	H-K9L	48	∞	43.506	9.6	84.20
101	S30.5P91	H-ZK9	30.5	∞	56.49	4	91.05
102	S40P91.3	H-K9L	40	∞	47.16	6	91.30
103	S20P93	JGS1	20	∞	42.775	3.1	93.00
104	S50P99.5	H-K50	50	∞	52	9.1	99.50
105	S58.4P100	H-K9L	58.4	∞	51.75	15	100.00
106	S25P100PCXFS	JGS1	25	∞	45.85	3.79	100.00
107	S40P100.4	H-K9L	40	∞	51.88	6	100.40
108	S43P104.3	JGS1	42	∞	47.83	8	104.30
109	S45P113.2	H-ZF6	45	∞	86.5	5	113.20
110	S16P123.6	H-K9L	16	∞	63.87	2.1	123.60
111	S30P125	JGS1	30	54.94	∞	6	125.00
112	S56P129.2	H-LAK7	56	∞	92.151	6	129.20
113	S36P133	H-K9L	36	68.668	∞	10	133.00
114	S30P147	JGS1	30	67.5	∞	3	147.00
115	S42P150.6	H-K9L	42	∞	77.81	4.9	150.60
116	S80HOLE25	H-K9L	80	∞	77.808	14	150.60
117	S42P150.6	H-K9L	42	∞	77.81	4.9	150.60
118	S52P151.2	H-BAF5	51.98	91.589	∞	6	151.20
119	S50P155	JGS1	50	∞	70.96	7.5	155.00
120	S46P159.8	K9	46	82.6	∞	5	159.83
121	S30P160	H-K9L	30	∞	82.632	5	160.00
122	S44P164.3	K9	44	84.85	∞	5	164.32
123	S100P185.7	H-K9L	100	∞	95.963	17	185.70
124	S74P193.5	H-K9L	74	∞	100	10	193.50
125	S25P200PCXFS	JGS1	25	∞	91.69	2.88	200.00
126	S25P203.7	ZF1	25	∞	131.911	3.7	203.70
127	S58P215	K9	58	110.976	∞	6	214.95
128	S30P248.2	JGS1	30	113.805	∞	5	248.20
129	S100P251	H-K9L	100	129.68	∞	12.53	251.00
130	S75P296	H-LAK10	75	∞	192.49	10	296.00
131	S100P301	H-K9L	100	155.621	∞	11.45	301.00
132	S80P321.7	H-ZF10	80	∞	221.61	9	321.70
133	S80P351.5	H-K9L	80	∞	181.65	7.5	351.50
134	S30P435FS	JGS1	30	∞	199.53	3	435.00
135	S30P490.8FS	JGS1	30	225	∞	3	490.80
136	S110P570.8	H-LAK7	110	∞	406.99	10	570.80
137	S30P699FS	JGS1	30	∞	320.375	3	699.00
138	S50P1100	H-K9L	50	∞	546.5	8	1100.00
139	S100P1995	H-ZF10	100	∞	919.11	12	1995.00
140	S100P2500	H-K9L	100	∞	1267.1	10	2500.00
