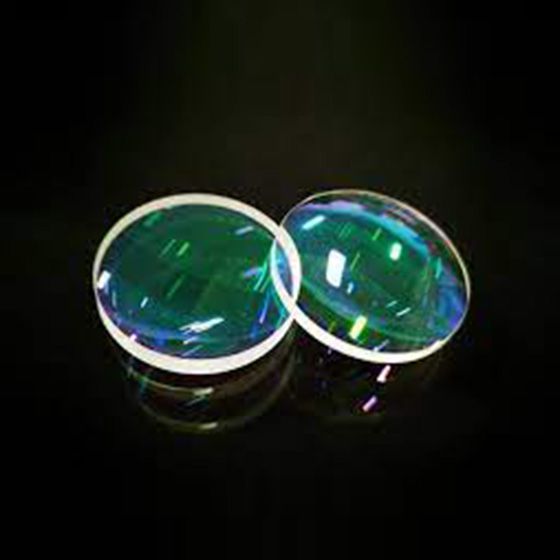

Oplens manufactures ultraviolet (UV) lens covering the wavelength of 350~410nm. Our UV products can be applied to laser, semiconductor industry and high intensity lighting system. We have rich experience in I-line materials, quartz, fluoride and other commonly used UV materials. You are welcome to contact us for custom UV optical lenses.
Interferometer Reflection Wavefront Report
Parameters
| Material | High Anti-reflective I-line material (GTI) |
| Surface Flatness | 0.15wave@633nm |
| Surface Quality | 40/20 |
| Centration | 20″ |
| Thickness Tolerance | ±0.02mm |
| Focal Length Tolerance | 0.5% |
| Diameter Tolerance | +0.00~-0.015 |
| Diameter Range | 5~250mm |
| Coating Wavelength Coverage | 350~410nm |
Drawing Sample
Reflective Film Coating Curve Diagram
